| ※ Column Type Load Cells
|

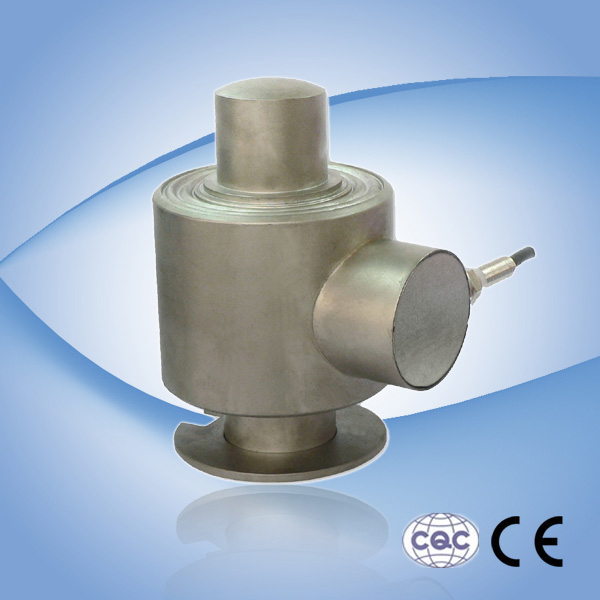

| QH-72 | | Date： 2014/09/12 click ：1737 |  |
|
Specifications: |
|
Capacity |
t |
20 |
|
Safe overload |
%FS |
150 |
|
Ultimate overload |
%FS |
300 |
|
Rated output |
mV/V |
2.0 ± 0.002 |
|
Excitation voltage |
Vdc |
9 ~ 12 |
|
Combined error |
%FS |
± 0.05 |
±0.03 |
|
Zero unbalance |
%FS |
± 1.5 |
|
Non-linearity |
%FS |
± 0.05 |
± 0.03 |
|
Hysteresis |
%FS |
± 0.05 |
± 0.03 |
|
Repeatability |
%FS |
± 0.03 |
± 0.02 |
|
Creep |
%FS/30min |
± 0.03 |
± 0.02 |
|
Input resistance |
Ω |
350 ± 5 |
700 ± 10 |
|
Output resistance |
Ω |
350 ± 3 |
700 ± 5 |
|
Insulation resistance |
M Ω |
≥ 5000 @ 50 Vdc |
|
Operating temperature range |
℃ |
-20 ~ +70 |
|
Compensated temperature range |
℃ |
-10 ~ +40 |
|
Temperature coefficient of SPAN |
%FS/10℃ |
± 0.03 |
± 0.02 |
|
Temperature coefficient of ZERO |
%FS/10℃ |
± 0.03 |
± 0.03 | |
|
|
|
|
|
